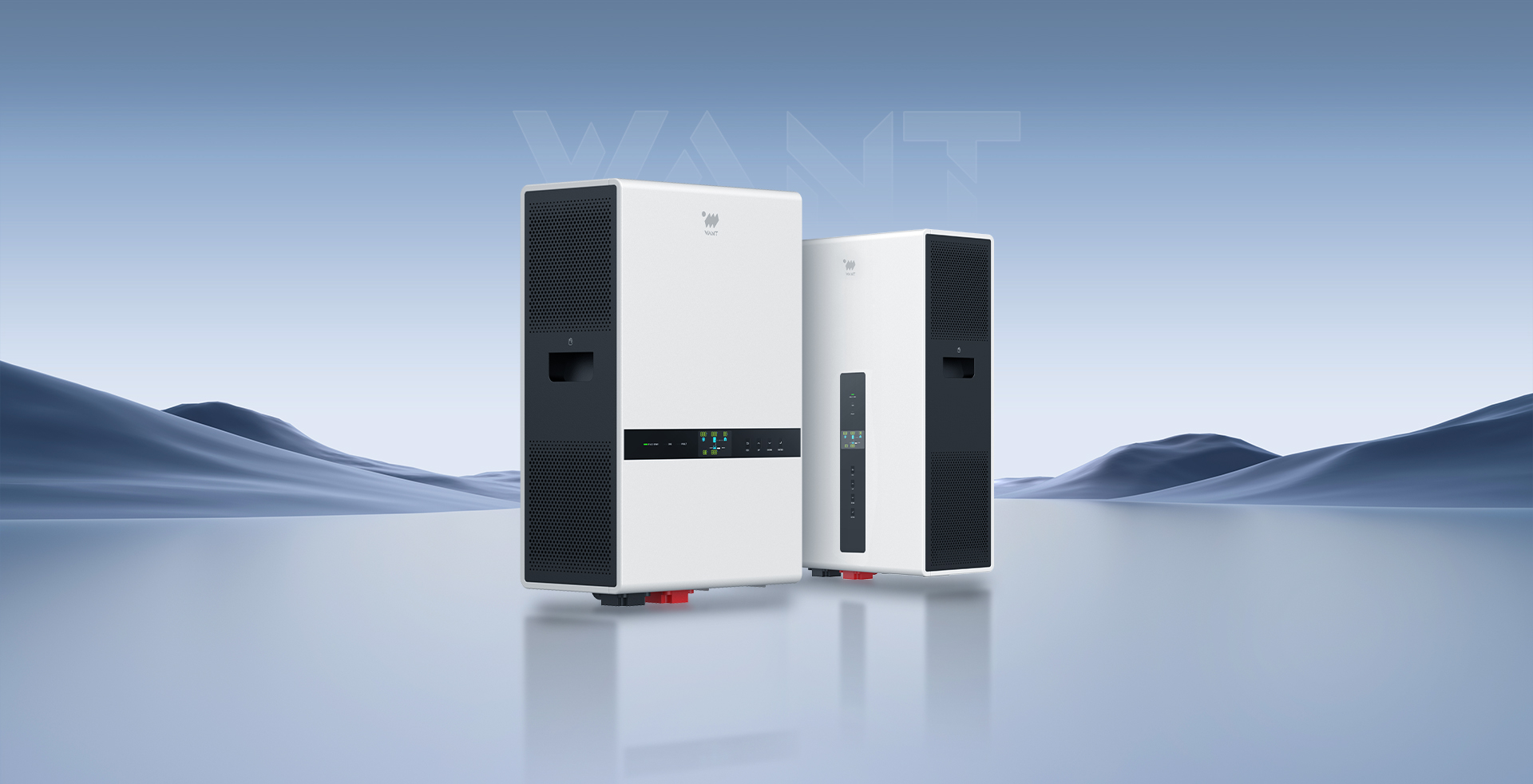

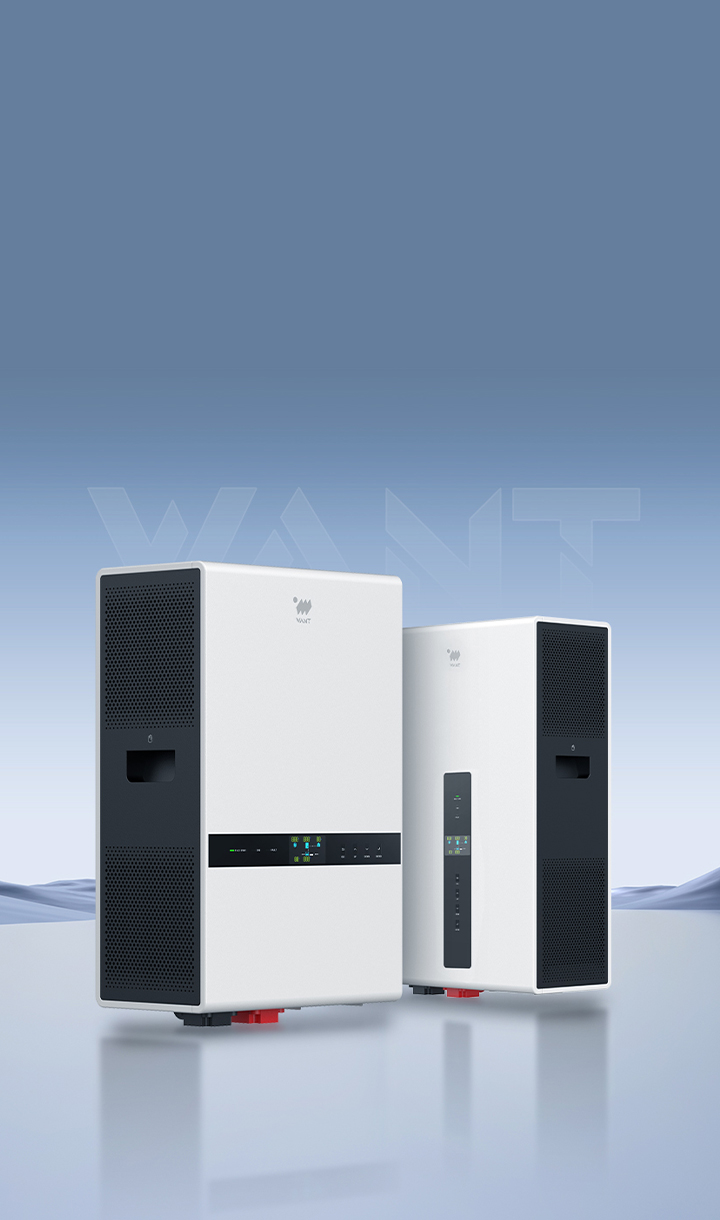

PWT series inverter
Low Frequency
Product Overview

The PWT series inverter is a multifunctional low-frequency pure sine wave inverter equipped with an MPPT solar charge controller. It connects to solar panels, the grid, batteries, and diesel generators but must operate with a battery and cannot feed power back to the grid.

Designed with a built-in transformer, it can handle surges up to three times its continuous capacity for 10 minutes, providing stable and reliable power that outperforms transformerless models. This makes it an excellent choice for off-grid backup power, self-consumption systems, and heavy-load applications.

  • High surge power
  • Stable performance
  • Easy operation
Power Data
at Your Fingertips
Track, monitor, and manage your energy consumption effortlessly with energy monitoring platform
Product Features
Build Your Solar Powered House
  • Low frequency pure sine waveform
    1
  • Integrated MPPT controller
    2
  • Integrated pure copper transformer
    3
  • 3 times peak power ability
    4
  • Capable of both single phase and split phase
    5
  • Compatible with lithium, lead-acid batteries
    6
  • WiFi and GPRS remote monitoring
    7
  • Comprehensive warranty guaranteed
    8
Product Parameters
Select Inverter on Demand
Rated Power [W]
Rated Voltage [VAC]
Battery Voltage [VDC]
Max. PV Array Power [W]
No. of MPPTs
MPPT Range Operating Voltage [VDC]
Charge Current [A]
Dimensions (W / H / D) [mm]
Weight [kg]
MAX. Efficiency [%]
Protection Degree
6000
230
48
5000
1
60 – 245
80
368 / 570 / 206
45
85
IP20
12000
230
48
7000
2
60 – 245
120
390 / 680 / 210
75
85
IP20
6000
120/240
48
5000
1
60 – 245
80
368 / 570 / 206
45
85
IP20
12000
120/240
48
7000
2
60 – 245
120
390 / 680 / 210
75
85
IP20
