380V series

Product Overview

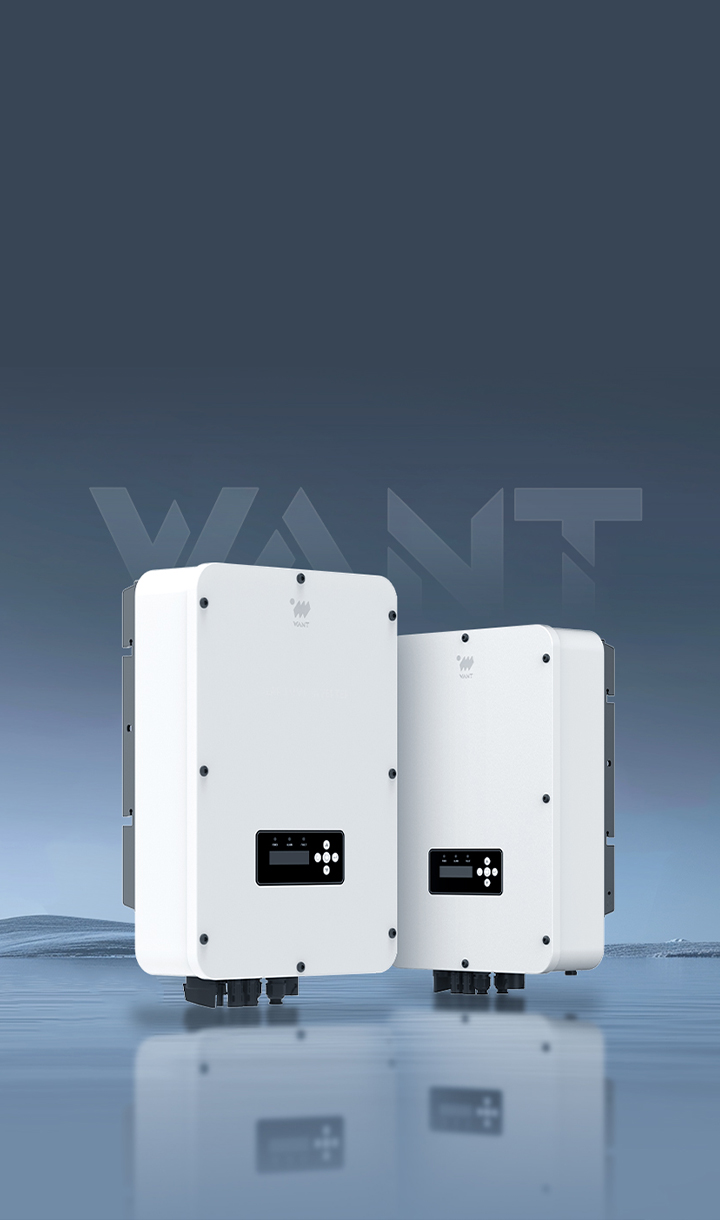

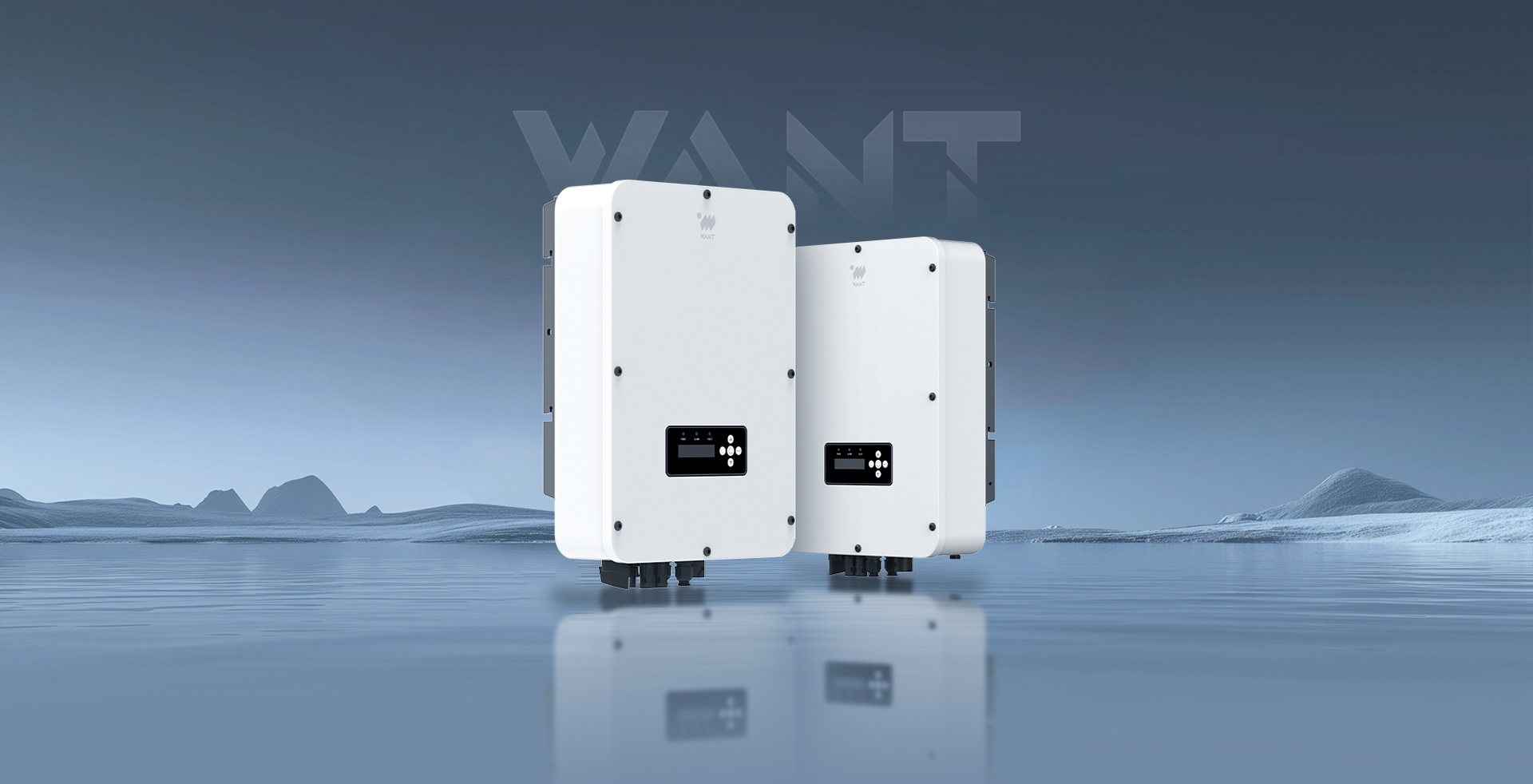

The 380V series solar pump inverter harnesses the power of the sun to control various AC motor water pumps.

With a focus on maximizing energy efficiency and reliability, this advanced inverter is designed to cater to the specific needs of solar-powered water pump systems.

Compact Size
Advanced Efficiency
Easy Operation

Power Data
at Your Fingertips

Track, monitor, and manage your energy consumption effortlessly with energy monitoring platform

Explore More

Product Features

Build Your Solar Powered House

Power range from 3kW to 22kW

1
Integrated MPPT controller

2
Up to 900V DC input

3
Dynamic VI MPPT control

4
IP65 protection level

5
Heatsink cooling

6
Full protection and self-diagnosis

7
WiFi and GPRS remote monitoring

8
Comprehensive warranty guaranteed

9

Product Parameters

Select Inverter on Demand

Rated power [KW]

Max. Output Current [A]

Output Frequency [Hz]

Output Voltage [VAC]

Max DC Input Voltage [VDC]

MPPT Range Operating Voltage [VDC]

Dimensions (W / H / D) [mm]

Weight [kg]

Protection degree

PD-3P3/4/5.5K-G1

DOWNLOAD

3 / 4 / 5

8 / 10 / 13

0 – 50 / 60

380, 3PH

900

500 – 680

340 / 480 / 157

13.8

IP65

PD-3P7.5/9.2/11K-G1

DOWNLOAD

7.5 / 9.2 / 11

18 / 21 / 24

0 – 50 / 60

380, 3PH

900

500 – 680

370 / 530 / 165

18.3

IP65

PD-3P13/15/18.5/22K-G1

DOWNLOAD

13 / 15 / 18.5 / 22

28 / 30 / 38 / 45

0 – 50 / 60

380, 3PH

900

500 – 680

410 / 570 / 178

23.8

IP65
